Samples

Sample as-built drawings

Anonymized sheets from a scanned metal building. Open the PDFs to zoom in.

Floor plan

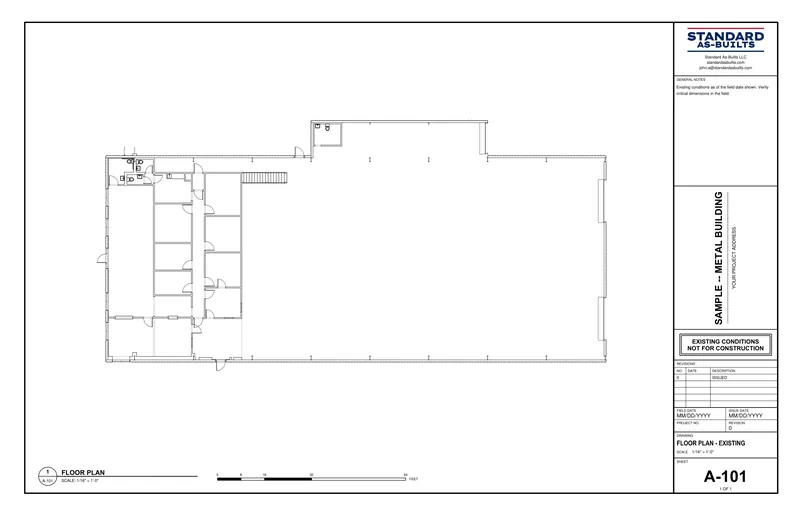

Sample existing-conditions floor plan of a metal building, an 11×17 A-101 sheet with title block. — The full 11×17 sheet. Open the PDF

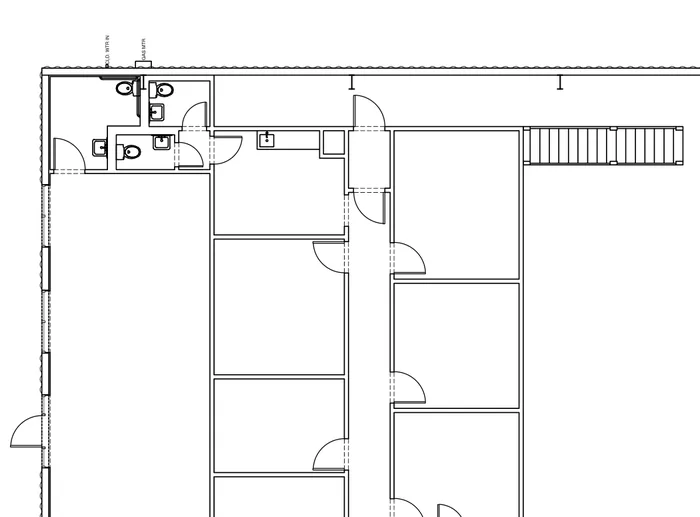

Close-up of the sample floor plan: offices, restrooms, doors and fixtures. — Up close: offices, restrooms, doors and fixtures.

Floor plan with roof framing

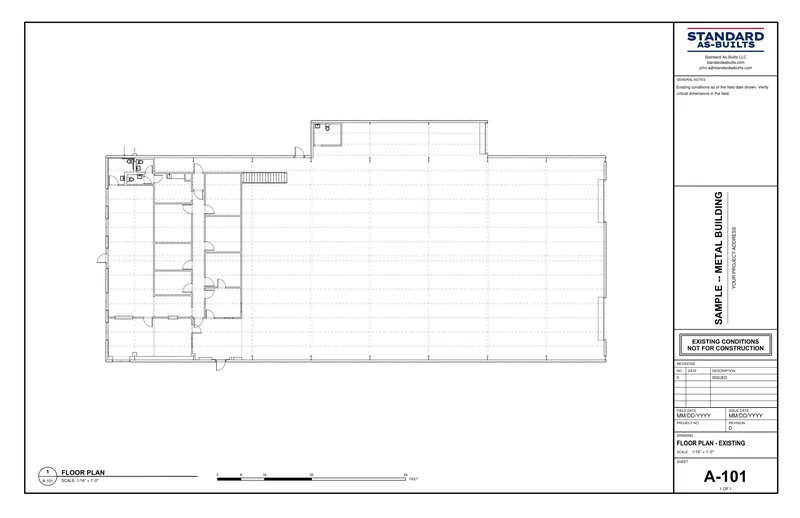

The same floor plan with the roof framing shown as dashed lines, an 11×17 A-101 sheet. — The full 11×17 sheet. Open the PDF

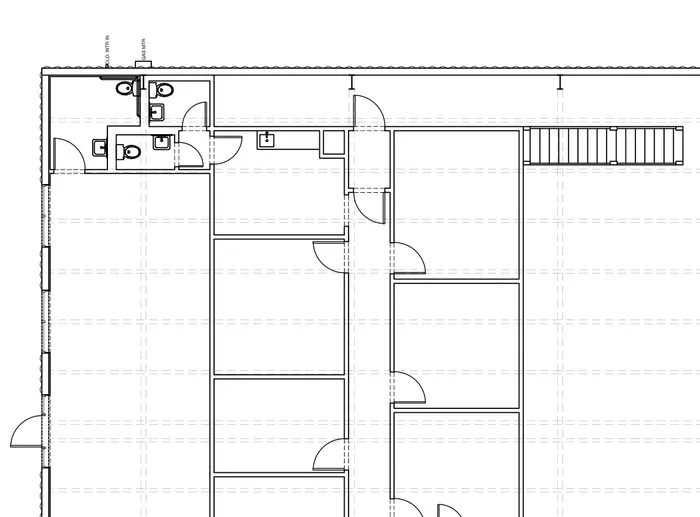

Close-up of the roof framing drawn dashed over the floor plan. — Rafters and purlins drawn dashed over the plan.
